FLYSAFE-M3 parachute system & circuit breaker for DJI Matrice 300 RTK

2820,00  TTC

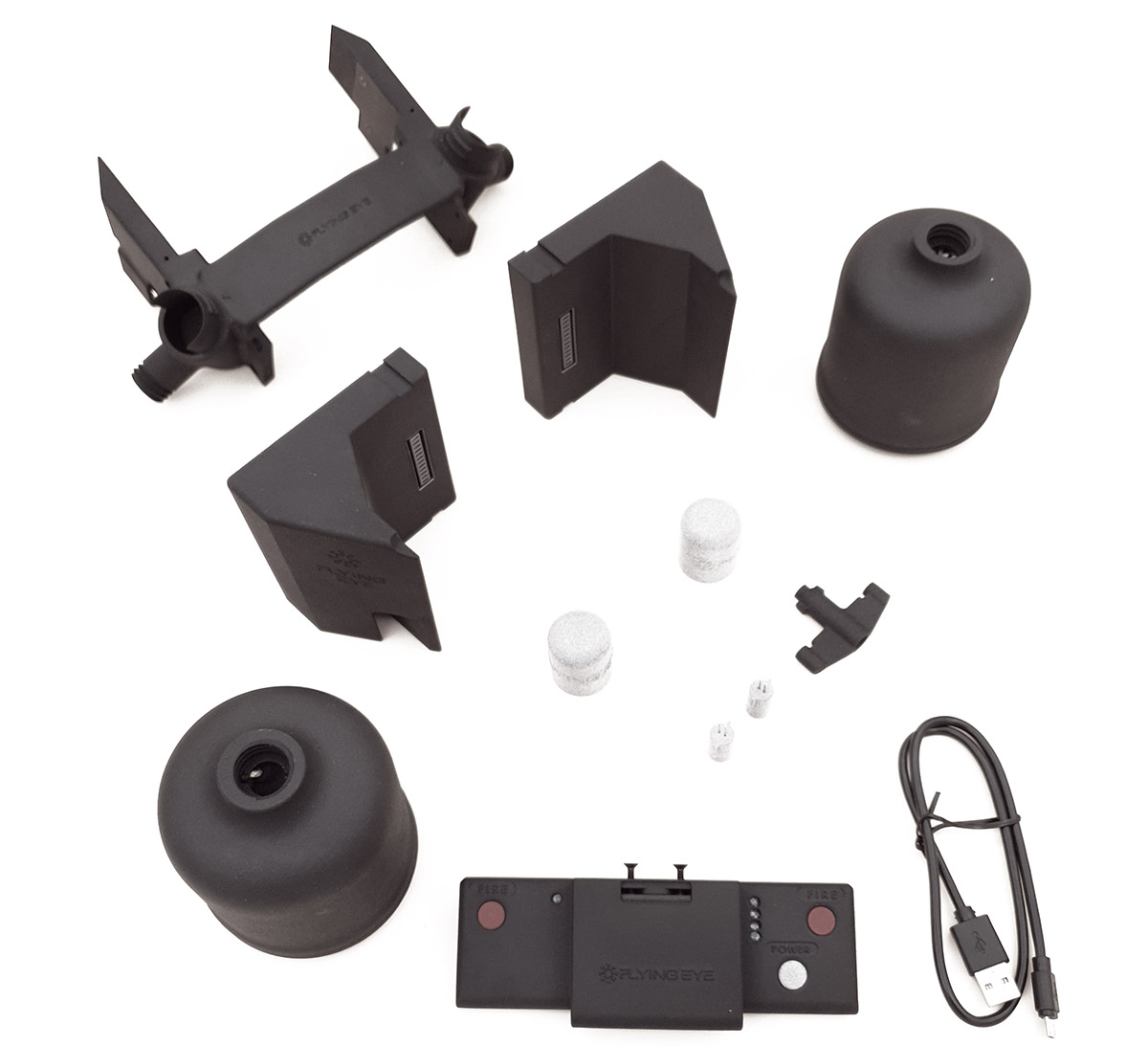

Safety kit for the DJI Matrice 300 RTK aircraft. Plug&Play. This kit includes two circuit breaker modules and two high-speed parachutes.

Ships within 10 days

SKU: 0630606381601 Categories: ,
logo flyingeye

Description

FLYSAFE-M3 is a new security system for DJI Matrice 300 RTK which is safe and lightweight.

It includes an ultra-fast double parachute, double circuit breaker, an alarm and a secure radio transmitter, fixed to the DJI Smart Controller Enterprise radio control system. In a few seconds the parachutes can be removed, allowing the DJI Matrice 300 RTK to be folded back into its original case.

For a totally infallible system, the parachutes are redundant. When the parachutes are released, the DJI M300 RTK lands straight down to avoid the breakage of an arm or a payload or a landing gear.

It functions correctly from a height above 10 meters thanks to the pyrotechnical technology taken from ultralight planes.

The centre of gravity of the Matrice 300 RTK is preserved. The very low coefficient of penetration in the air means that no vibrations are generated at high speed, thus maintaining perfect flight behaviour.

The system does not obstruct any sensors of the DJI Matrice 300 RTK and therefore flying it stays 100% reliable and 100% under DJI warranty.

Reliable, robust and lightweight high-tech materials.

The installation of the system was designed to be done by the customer and does not need any internal modification of the DJI Matrice 300 RTK. The DJI manufacturer’s warranty is preserved.



Reusable

The system is reusable. In the case you have triggered the parachutes, you need to replace the pyro charges and fold the parachutes back inside the containers.



Maintenance

We recommend an annual maintenance of this product to ensure its correct performance over time.

Flying Eye manufacturer’s warranty runs for 2 years as long as you follow the maintenance program.

Additional information

Weight 10 kg
Dimensions 30 × 30 × 30 cm

Brand

Flying Eye

Flying Eye est une marque créé un 2009 reconnu comme expert des systèmes drones civils professionnels.

FLYING EYE développe et commercialise depuis 2012 des systèmes de sécurité parachutes avec coupe-circuit pour drone, avec un très haut niveau de fiabilité, qui sont utilisés dans de nombreux pays grace à l’obtention des certifications de vol.

logo flyingeye

Product Video

Weight of the complete system: 700g

Operating Temperature: -20°C to 50°C

Impact energy: 65,8 Joules @ 8kg

Frequency : 868MHz (915Mhz on request)

Redundancy of the power cut-off electronics

Redundancy of the parachutes

Double release button on the remote control

Encrypted frames - checksum to authenticate the frame. Pairing in both directions.

Logs on micro-sd card

Remote control autonomy of 40 hours (1800mAh lipo battery rechargeable by micro-USB)

Auto power Off (after 30 minutes without connection)

Battery voltage display on the remote control (4 LED)

Emergency power supply allowing parachutes to be deployed up until 1 minute after a loss of drone power

Powering on and off the remote control securely (like a DJI battery)

Possibility to pair up to 4 remote controls per drone

Warranty: 2 years (in case of following maintenance program)

  • Parachute and circuit breaker kit for DJI Matrice 300 RTK
  • Type conception certification
  • Type approval certification
  • Operation and maintenance manual
  • Installation and user manual
