Herelink HD Video Transmission

999,00 TTC

Bientôt disponible

Alerte de disponibilité :

Partage

Description

Ref. HX4-06071

Système de transmission radio dernière génération de ProfiCNC, le Herelink propose une portée record de 20 km (FCC) et 12km (CE).

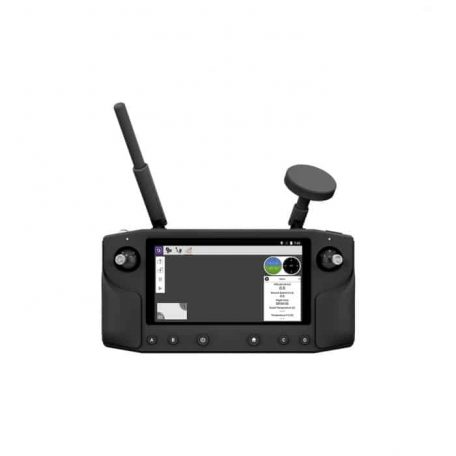

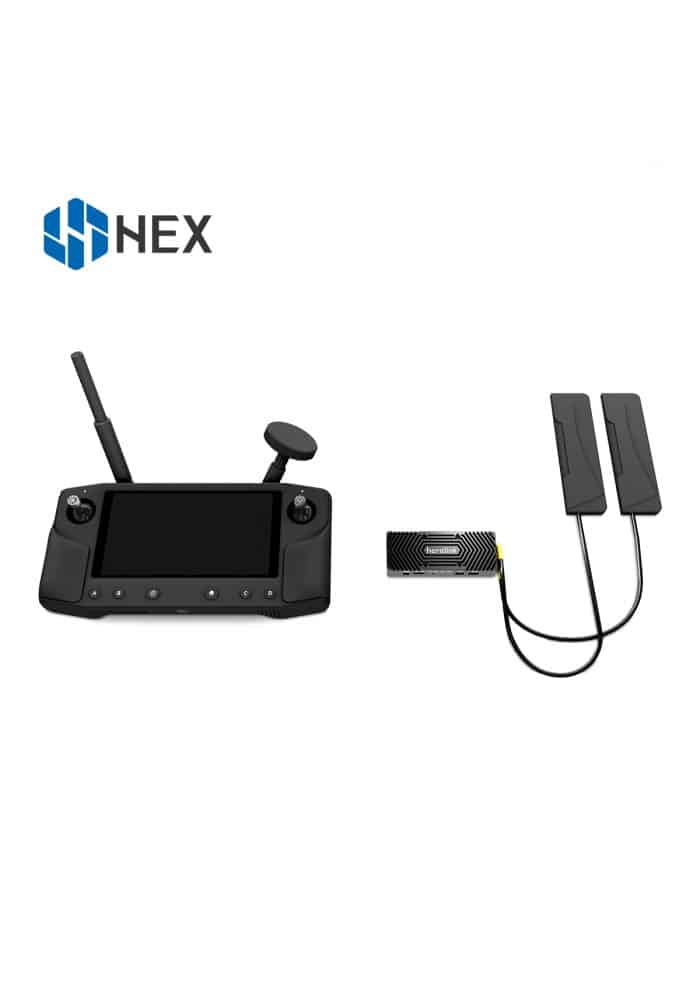

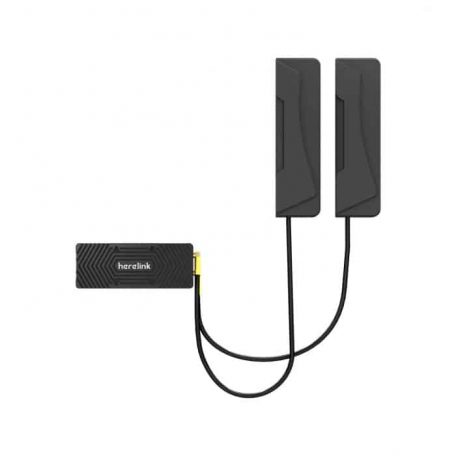

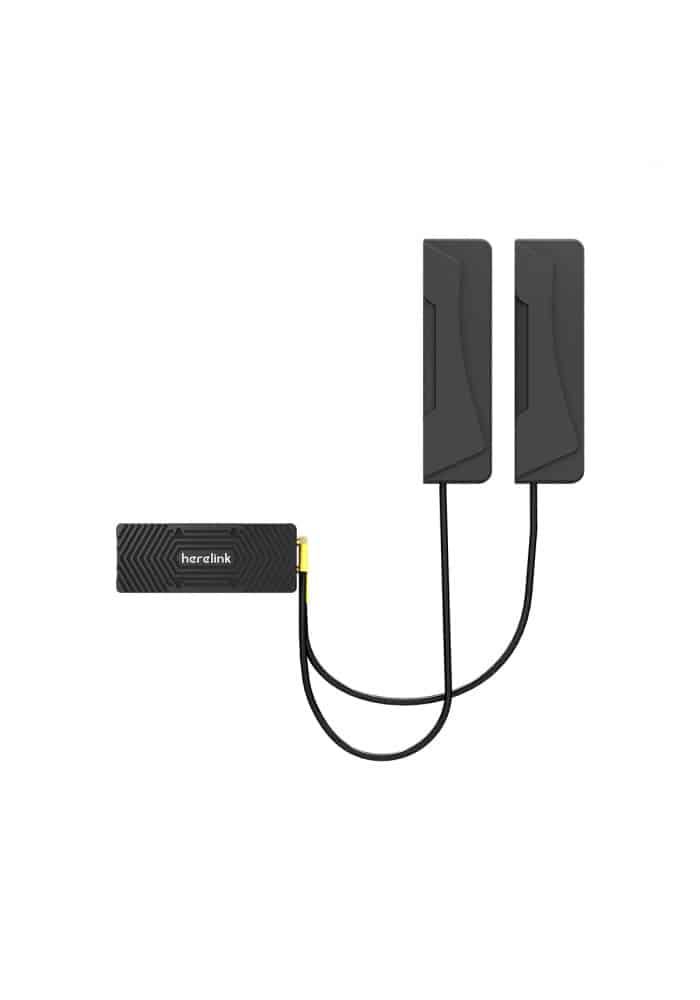

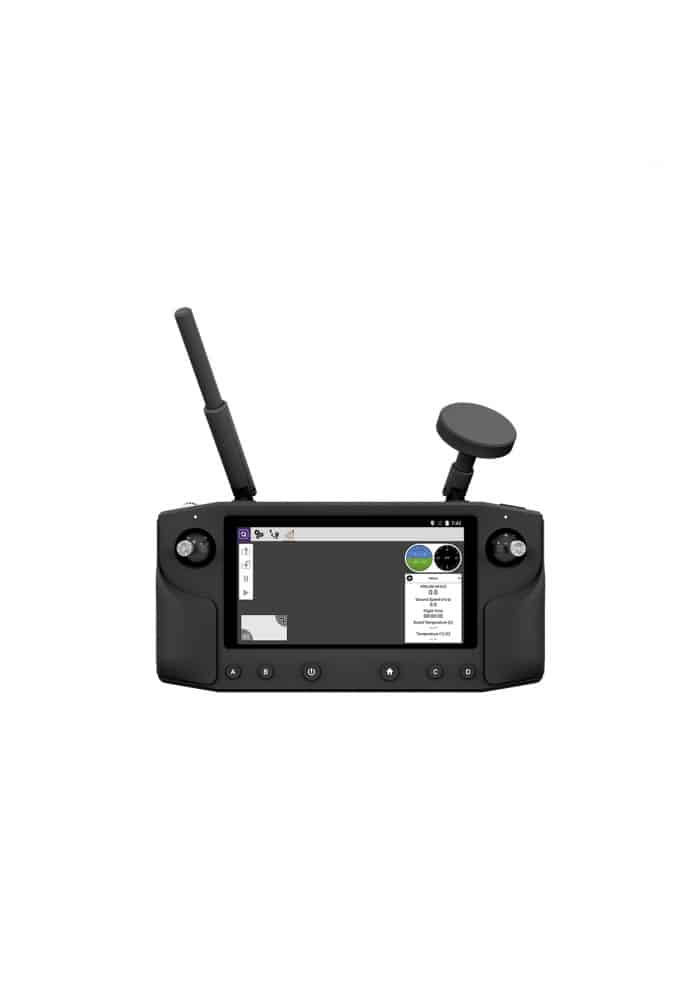

Le pack est constitué d’une unité AIR et d’une station sol sous forme de radiocommande avec écran tactile intégré pour Mission Planner, par exemple.

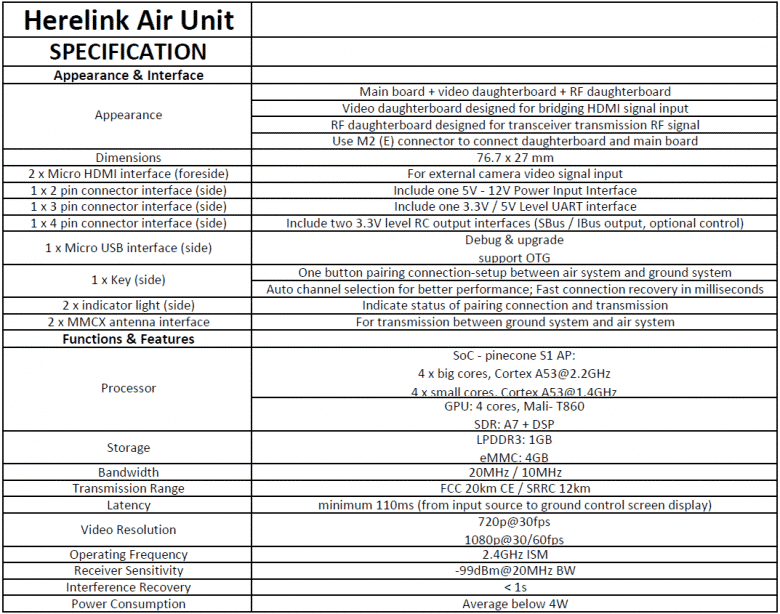

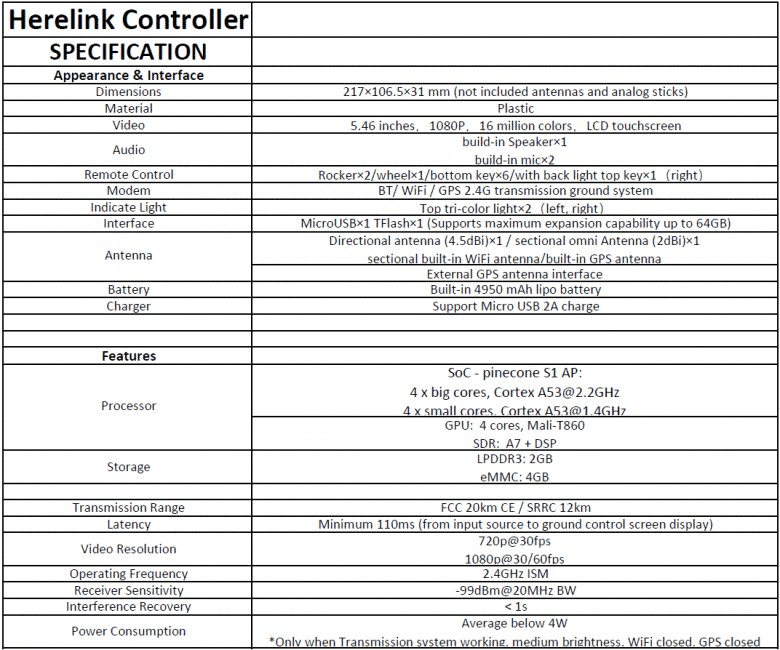

Herelink spec

Herelink spec

Appearance & Interface
Appearance Main board + video daughterboard + RF daughterboard

Video daughterboard designed for bridging HDMI signal input;

RF daughterboard designed for transceiver transmission RF signal;

Use M2 (E) connector to connect daughterboard and main board.

Dimensions 76.7 x 27 mm
2 x Micro HDMI interface (foreside) for external camera video signal input
1 x 2 pin connector interface (side) include one 5V - 12V Power Input Interface
1 x 3 pin connector interface (side) include one 3.3V / 5V Level UART interface
1 x 4 pin connector interface (side) include two 3.3V level RC output interfaces

(SBus / IBus output, optional control)

1 x Micro USB interface (side) Debug & upgrade      support OTG
1 x Key (side) One button pairing connection-setup between air system and ground system;

Auto channel selection for better performance;

Fast connection recovery in milliseconds.

2 x indicator light (side) indicate status of pairing connection and transmission.
2 x MMCX antenna interface for transmission between ground system and air system
Functions & Features
Processor SoC - pinecone S1

AP: 4 x big cores, Cortex A53@2.2GHz

4 x small cores, Cortex A53@1.4GHz

GPU: 4 cores, Mali- T860

SDR: A7 + DSP

Storage LPDDR3: 1GB

eMMC: 4GB

Bandwidth 20MHz / 10MHz
Transmission Range FCC 20km CE / SRRC 12km
Latency minimum 110ms

(from input source to ground control screen display)

Video Resolution 720p@30fps

1080p@30/60fps

Operating Frequency 2.4GHz ISM
Receiver Sensitivity -99dBm@20MHz BW
Interference Recovery < 1s
Power Consumption average below 4W
