Plateforme radio Mesh Rider
La radio Mesh Rider® fournit des liaisons résilientes, à faible latence, à longue portée et à haut débit pour mettre en œuvre des réseaux maillés mobiles sans fil privés de qualité industrielle.
Bande WiFi 2,4 GHz
La bande des 2,4 GHz est libre de licence dans la plupart des pays du monde. Elle peut être utilisée à toutes fins. Aux États-Unis, au Canada, en Amérique centrale et en Amérique latine, les modems sont autorisés à transmettre jusqu’à 4 W de PIRE (radio de 30 dBm + antenne de 6 dBi) pour réaliser des liaisons de plusieurs kilomètres de long pour les applications IIoT comme les drones et les robots terrestres.
Mesh Rider
Une radio maillée de petite taille et de haute performance conçue pour les systèmes sans pilote. La radio Embedded Mesh Rider® est une radio robuste qui intègre tous les avantages de Mesh Rider dans un facteur de forme optimisé en termes de taille, de poids et de puissance.
Distance de la liaison
La forme d’onde Mesh Rider® Radio a été testée sur le terrain par des clients pour fournir une liaison de plus de 100 km. La distance de liaison de chaque système dépend toutefois de nombreux facteurs : principalement le gain de l’antenne, les obstructions de la ligne de visée, le dégagement de la zone de Fresnel et les conditions de bruit ambiant. Le tableau ci-dessous donne une indication des performances de la radio dans une configuration typique.
RM-2450 Xtreme Link Performance
Antenne distante = 6 dBi, Antenne de la station de contrôle = 9 dBi, Marge d’évanouissement = 10 dBm, Zone de Fresnel 60% de dégagement
| PERFORMANCE OVERVIEW | |
|---|---|
| Protocol Compatibility | Fully compatible with Wi-Fi (IEEE 802.11b,g,n) |
| Nano, Mini-OEM, Embedded, External: Max Operating Range (Indicative) |
>20 Km (Recommended), (Max field demonstrated range >100km) |

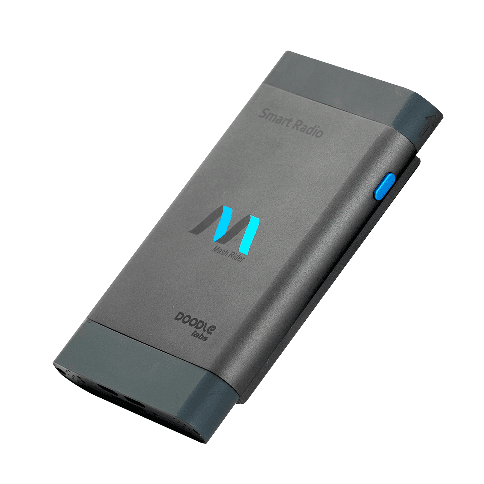

| Wearable/OEM: Max Operating Range |
Operating Range with Embedded Antennas in the backpack (Indicative): 500 Meters (1,600 feet)Operating Range with 3 dBi Attached Antennas in the backpack (Indicative): 1.6 Km (1 mile)Unobstructed Operating Range with 3 dBi Attached Antenna (Indicative): >8 Km (>5 Miles) |
| Over the Air Data Encryption |
256-bit AES software encryption (12 Mbps max throughput) (FIPS140-2, Level 2 compliant)128-bit AES software encryption (90 Mbps max throughput) |
| Operating Modes | WiFi Radio: AP, Client Mesh Rider Radio: Mesh, WDS AP, WDS Client Bridged or Internet Gateway with NAT |
| Command & Control Channel |
Ultra-Reliable Low Latency Channel (URLLC). Latency 3-30 ms |
| Video Channel | Optimized video streaming with Unicast and Multicast transmission |
| Spectrum Scan | Automatic spectrum scan on boot up |
| Mesh Automatic Transmit Power Control |
Intelligently adjusts Tx output power based on signal strength. Allows the device to be utilized in a dispersed and dynamic mesh. |
| RF SPECIFICATIONS | |
|---|---|
| Frequency Range | 2400-2482 MHz |
| Max RF Power at SMA port (Software control) Each radio individually calibrated |
1W (30 dBm) @ MCS 0,8 0.8W (29 dBm) @ MCS 3,11 0.4W (26 dBm) @ MCS 5,13 250mW (24 dBm) @MCS 7,15 |
| Channel Sizes (Software Selectable) |
3, 5, 10, 20 MHz |
| Radio Data Rate | Auto adapting Modulation Coding Scheme (MCS0-15) |
| Antenna Signal Strength | -25 to -85 dBm (Recommended), Absolute Maximum= +12 dBm |
| Embedded & External: Receiver LNA Gain | >10 dB |
| Wearable & OEM: Receiver LNA Gain | >20 dB |
| Mini-OEM: Receiver LNA Gain | >15 dB |
| RF Power Control | In 1 dBm steps, Tolerance ±1 dBm |
| Automatic Transmit Power Control (ATPC) |
Intelligently adjusts the transmit power for very close range operation |
| Integrated Antenna Port Protection |
Able to withstand open port, >10 KV (contact) and >15KV (open air discharge) as per IEC-61000-4-2 |
| Wireless Error Correction | FEC, ARQ |
| Spectrum Scan | Automatic spectrum scan on boot up. |
| WIFI HOTSPOT RF SPECIFICATIONS (APPLICABLE TO WEARABLE & OEM MODELS ONLY) | |
|---|---|
| WiFi Standard | IEEE 802.11n, 2×2 MIMO |
| Frequency Range | 2400-2482 MHz |
| RF Power Output (Typ) | 50 mW (17 dBm) EIRP |
| Channel Size | 20 MHz |
| Radio Data Rate | Auto adapting Modulation Coding Scheme (MCS 0-15) |
| Antenna Signal Strength | -25 to -85 dBm (Recommended), Absolute Maximum= +12 dBm |
| Wearable & OEM: Receiver LNA Gain | >20 dB |
| RF Power Control | In 1 dBm steps, Tolerance ±1 dBm |
| Wireless Error Correction | FEC, ARQ |
| NETWORKING SPECIFICATIONS | |
|---|---|
| Mesh Router | Self-Forming/Self-Healing, Peer to Peer |
| Custom Software Package Manager |
Image Builder, OPKG, ipk |
| Radio Management | Web GUI (HTTPs), SSH, SNMP and JSON-RPC |
| Access control | Password, MAC, IP, Port filtering |
| Supported Protocols | IPv6, QoS, DNS, HTTPS, IP, ICMP, NTP, DHCP |
| Software Upgrade | Over the air software upgrade supported |
| ADDITIONAL MESH RIDER RF SPECIFICATIONS | |
|---|---|
| Radio Data Rates (Dynamic Link Auto Adaptation) | MCS15 = 64QAM (5/6) MCS14 = 64 QAM (3/4) MCS13 = 64 QAM (2/3) MCS12 = 16QAM (3/4) MCS11 = 16QAM (1/2) MCS10 = QPSK (3/4) MCS9 = QPSK (1/2) MCS8 = BPSK (1/2) MCS7 = 64QAM (5/6) MCS6 = 64 QAM (3/4) MCS5 = 64 QAM (2/3) MCS4 = 16QAM (3/4) MCS3 = 16QAM (1/2) MCS2 = QPSK (3/4) MCS1 = QPSK (1/2) MCS0 = BPSK (1/2) |
| Rx Sensitivity (3 MHz Channel BW) | -100 dBm @ MCS 0 -97 dBm @ MCS 1 -95 dBm @ MCS 2 -92 dBm @ MCS 3 -87 dBm @ MCS 4 -85 dBm @ MCS 5 -82 dBm @ MCS 6 -79 dBm @ MCS 7 -97 dBm @ MCS 8 -93 dBm @ MCS 9 -91 dBm @ MCS 10 -88 dBm @ MCS 11 -84 dBm @ MCS 12 -80 dBm @ MCS 13 -79 dBm @ MCS 14 -78 dBm @ MCS 15 |
| Rx Sensitivity (5 MHz Channel BW) | -98 dBm @ MCS 0 -95 dBm @ MCS 1 -93 dBm @ MCS 2 -90 dBm @ MCS 3 -85 dBm @ MCS 4 -83 dBm @ MCS 5 -80 dBm @ MCS 6 -77 dBm @ MCS 7 -95 dBm @ MCS 8 -91 dBm @ MCS 9 -89 dBm @ MCS 10 -85 dBm @ MCS 11 -82 dBm @ MCS 12 -78 dBm @ MCS 13 -77 dBm @ MCS 14 -76 dBm @ MCS 15 |
| Rx Sensitivity (10 MHz Channel BW) | -96 dBm @ MCS 0 -93 dBm @ MCS 1 -91 dBm @ MCS 2 -88 dBm @ MCS 3 -83 dBm @ MCS 4 -81 dBm @ MCS 5 -78 dBm @ MCS 6 75 dBm @ MCS 7 -93 dBm @ MCS 8 -89 dBm @ MCS 9 -87 dBm @ MCS 10 -84 dBm @ MCS 11 -80 dBm @ MCS 12 -76 dBm @ MCS 13 -75 dBm @ MCS 14 -74 dBm @ MCS 15 |
| Rx Sensitivity (20 MHz Channel BW) | -93 dBm @ MCS 0 -90 dBm @ MCS 1 -88 dBm @ MCS 2 -85 dBm @ MCS 3 -80 dBm @ MCS 4 -78 dBm @ MCS 5 -75 dBm @ MCS 6 -72 dBm @ MCS 7 -90 dBm @ MCS 8 -86 dBm @ MCS 9 -84 dBm @ MCS 10 -81 dBm @ MCS 11 -77 dBm @ MCS 12 -73 dBm @ MCS 13 -72 dBm @ MCS 14 -70 dBm @ MCS 15 |
| Receive Adjacent Channel Rejection (ACRR) |
>34 dB @ MCS0 for 20 MHz channel (Typ) |
| Receive Noise Figure | +4 dB |
| Transmitter Adjacent Channel Leakage Ratio (ACLR) | 28 dBr (Fc ± ChBW) |
| Transmitter Spurious Emission Suppression |
-40 dBc |
| Frequency Accuracy | ±10 ppm max over life |
| REGULATORY INFORMATION | |
|---|---|
| FCC ID | 2AG87RM-2450-2H. |
| Industry Canada (IC) | 21411-RM24502H |
| THIS | Fully Certified |
| Regulatory Requirements | Designed and verified to meet various regulatory requirements. Formal testing and approval are required for the Integrator’s antenna type. The integrator is responsible for obtaining all regulatory approvals in target markets for the finished product. |
| RoHS/WEEE Compliance | Yes. 100% Recyclable/Biodegradable packaging |
