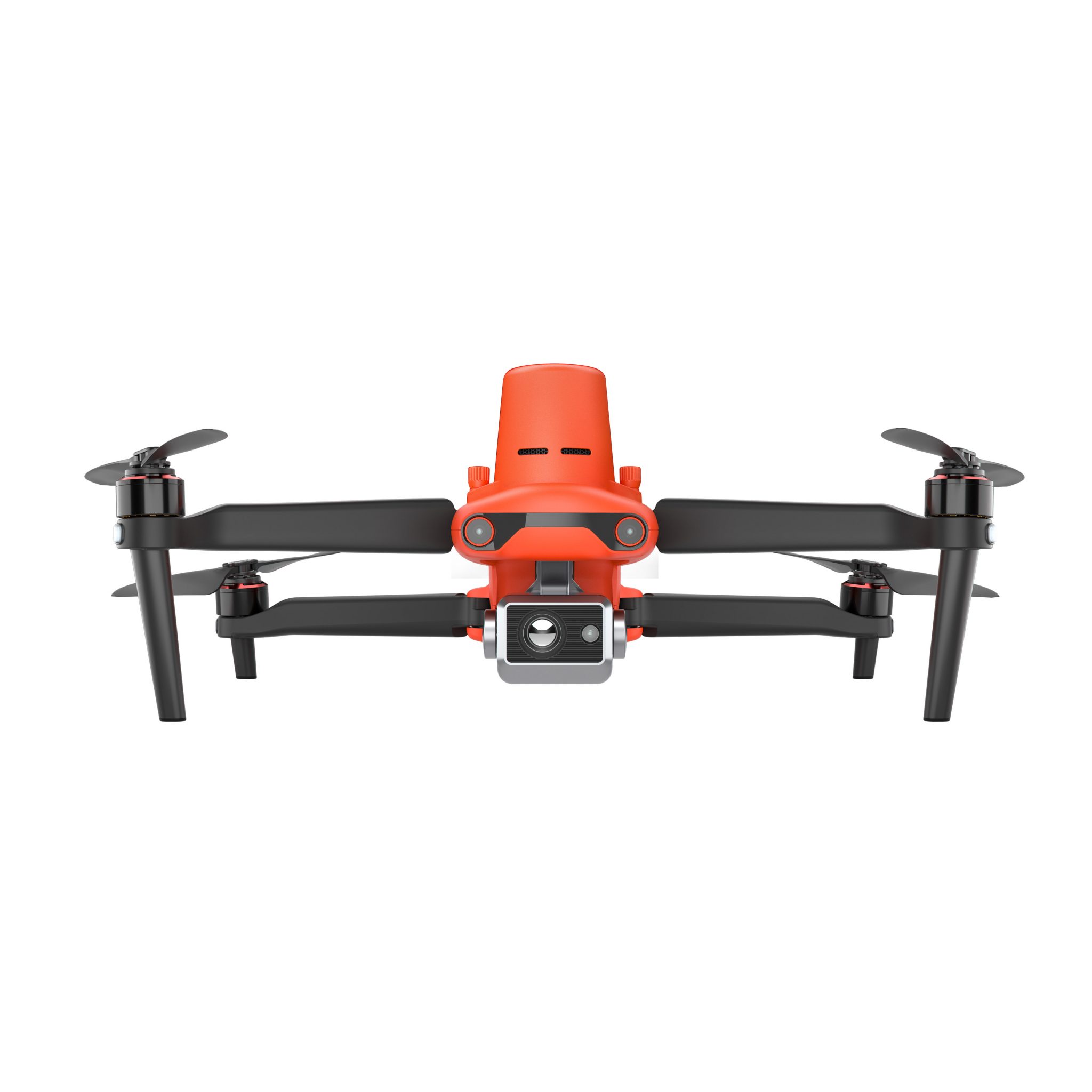

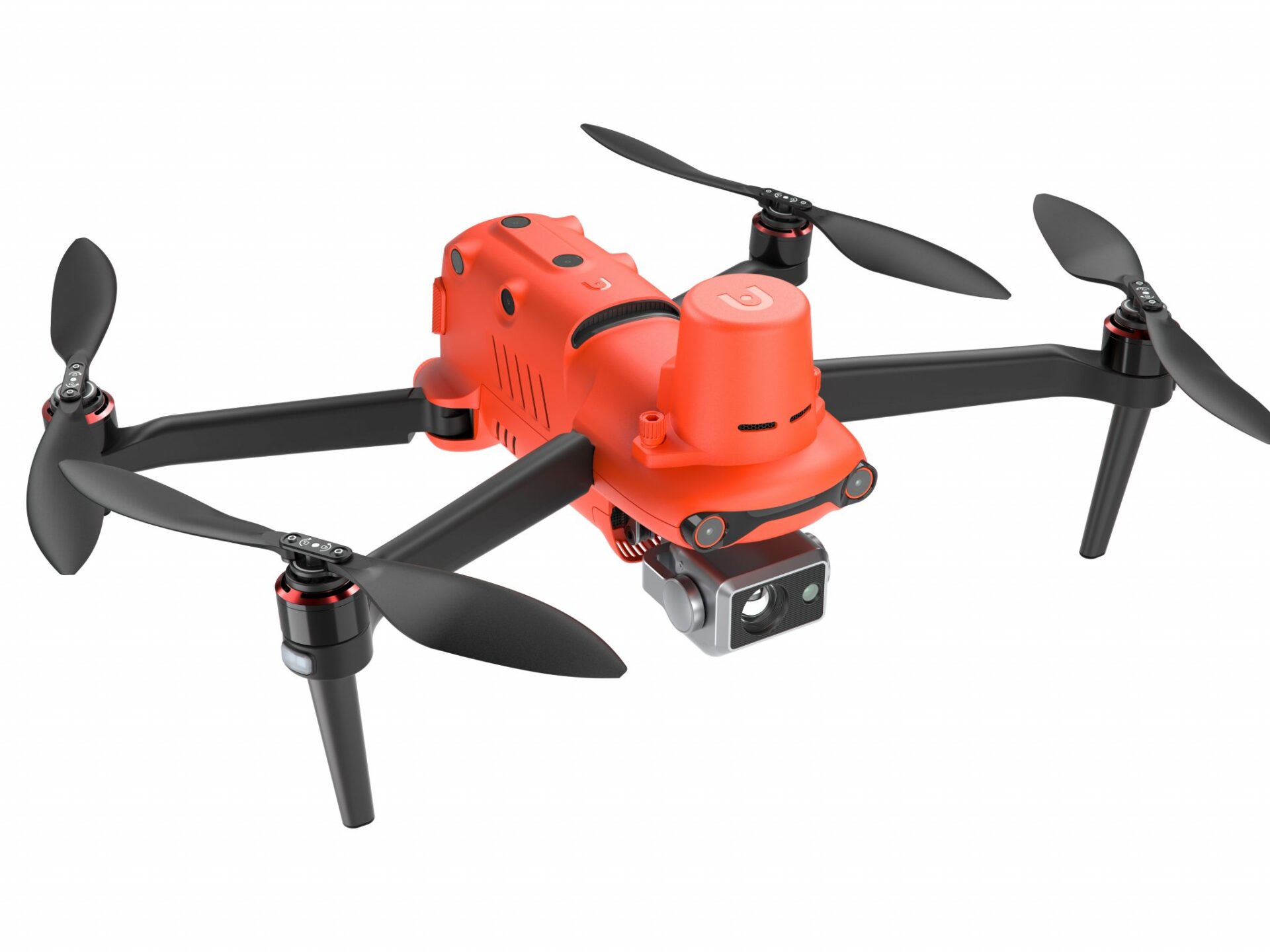

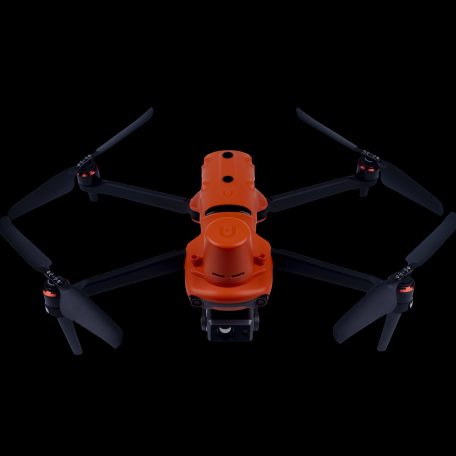

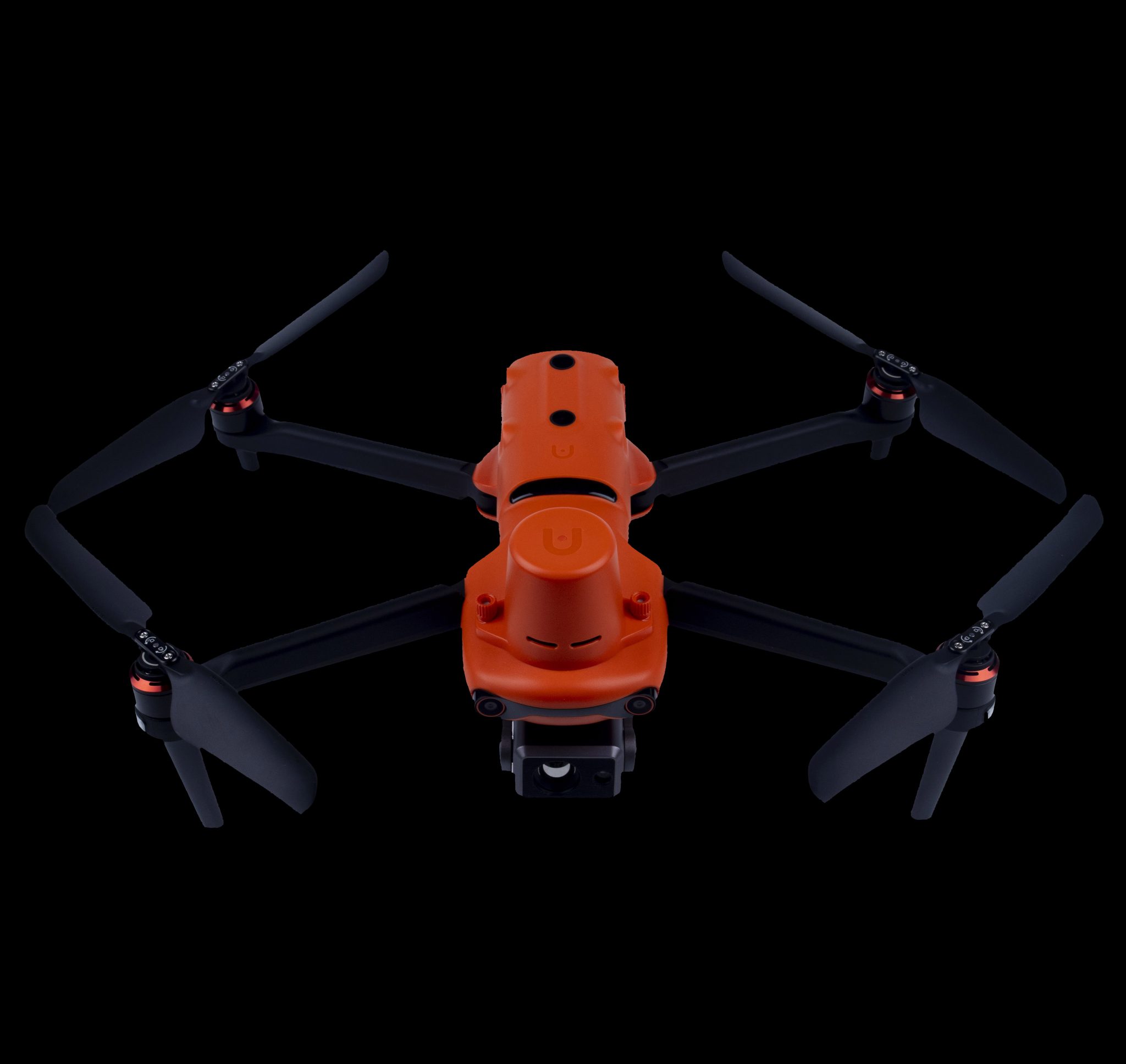

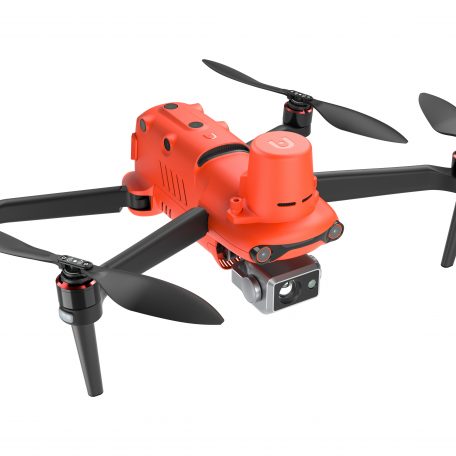

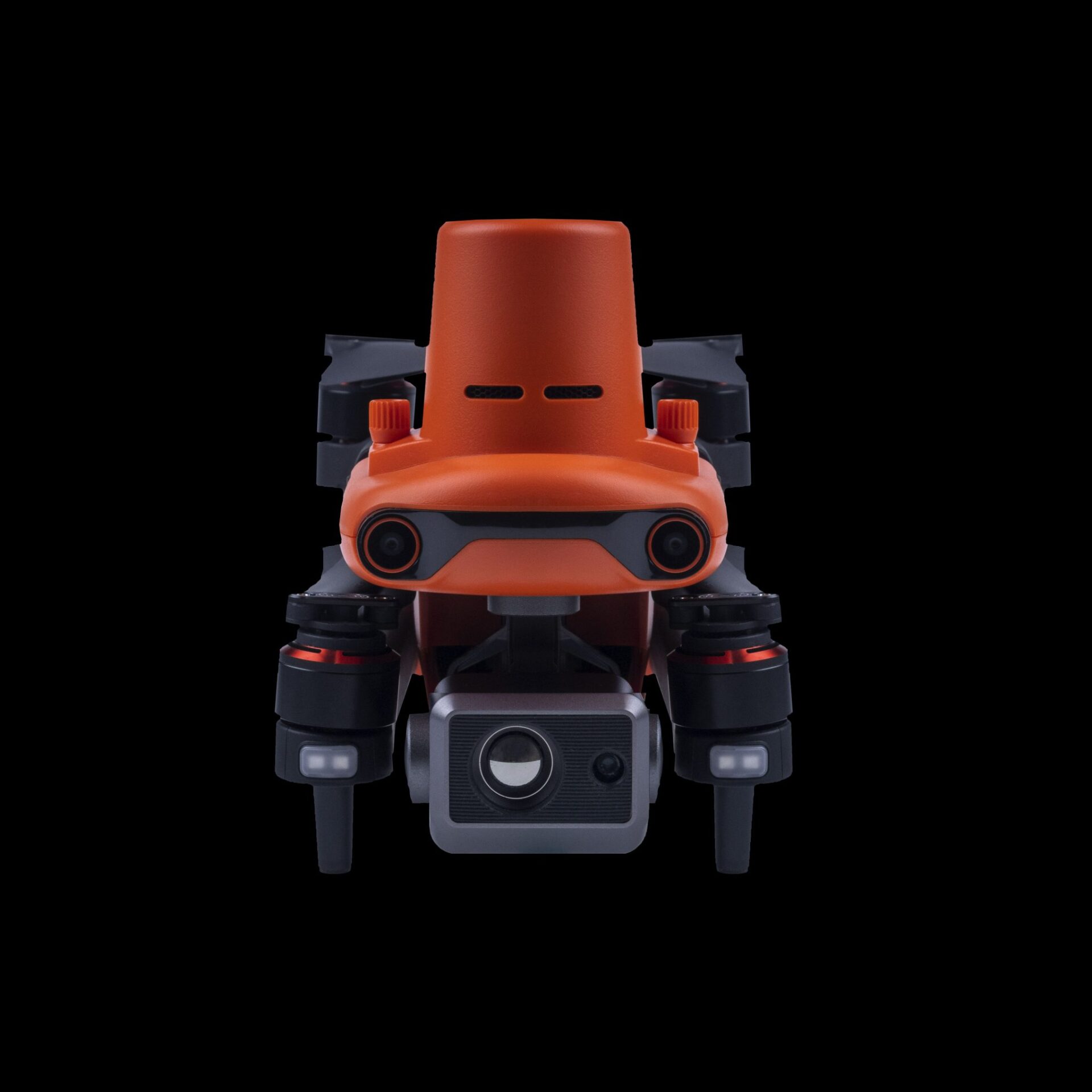

Autel Robotics EVO II Dual 640T RTK V2 Rugged Bundle

8999,00  TTC

Autel Robotics offers a brand new RTK module with the EVO II series that provides centimetre-level positioning data and supports post-processing kinematics (PPK).

Equipped with a 640 x 512 thermal imaging camera and an 8K camera, EVO II Dual 640T will allow you to take highly detailed pictures and get optimised information.

Sur commande

SKU: 6924991102267 Category:

Description

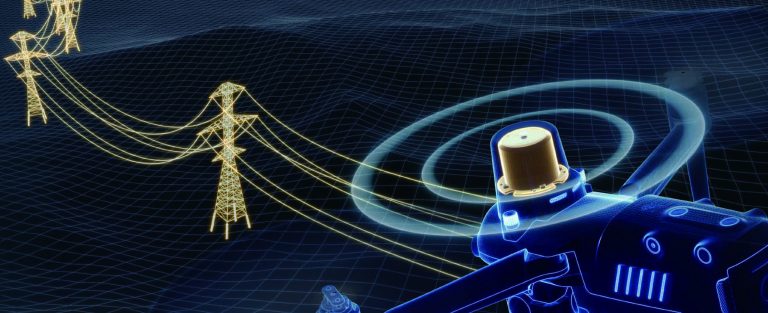

CENTIMETRE-LEVEL POSITIONING

The EVO II RTK series incorporates an all-new RTK module, which provides real-time centimetre-level positioning data and supports post-processing kinematics (PPK). The UAV can record original satellite observation data, camera exposure parameters and various other data. The positioning system supports the A-RTK base station and RTK network, allowing for accurate and stable data acquisition in complex operating environments.
EVO II RTK SERIES

TWO CAMERAS, ACCURATE TEMPERATURE MEASUREMENT

EVO II Dual 640T RTK is equipped with a high-resolution thermal imaging camera and an 8K camera, allowing you to capture highly detailed images for optimal information.

Accurate Temperature Measurement

The EVO II Dual 640T RTK can accurately detect heat sources from a distance of 2 to 5 metres. By taking advantage of the infrared temperature measurement compensation algorithm, the 640T RTK can regulate temperature differences to within 3°C.

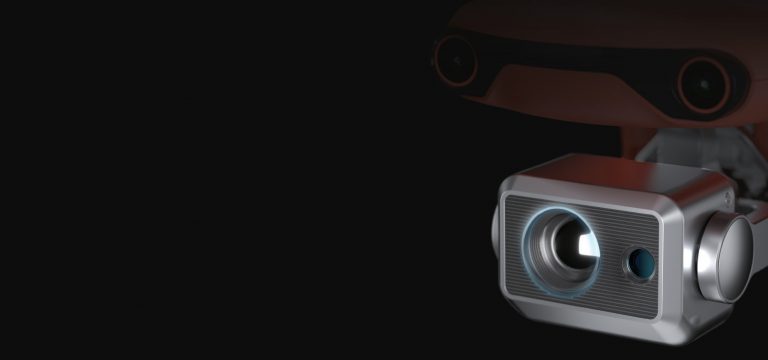

High resolution thermal imaging sensor

The 640T RTK features a 13 mm focal length combined with a 640 * 512 thermal imaging sensor and an 8K ultra high definition visible camera. Together, these sensors provide you with dual vision to give you the crisp, clear imagery you need to accomplish your missions.

Autel Robotics Evo II PRO RTK

LIGHT, EFFICIENT AND RELIABLE

The EVO II RTK series inherits the folding design of the original EVO II series, making it compact, lightweight, portable and ready to fly in just a few seconds. In addition to a maximum transmission range of 9 km, the drone offers a flight time of up to 36 minutes and can reach a maximum speed of up to 20 m/s, making it the ideal flight companion for your daily missions.

MISSION EXECUTION WITH ADVANCED INTELLIGENCE

The EVO II RTK series offers users a full range of features and intelligent solutions to meet a variety of mission needs. With advanced flight controls and the latest AI technology, the drone can significantly improve mission workflows and help reduce operating costs.

Brand

Autel Robotics

CENTIMETRE-LEVEL POSITIONING

The EVO II RTK series incorporates an all-new RTK module, which provides real-time centimetre-level positioning data and supports post-processing kinematics (PPK). The UAV can record original satellite observation data, camera exposure parameters and various other data. The positioning system supports the A-RTK base station and RTK network, allowing for accurate and stable data acquisition in complex operating environments.
EVO II RTK SERIES

TWO CAMERAS, ACCURATE TEMPERATURE MEASUREMENT

EVO II Dual 640T RTK is equipped with a high-resolution thermal imaging camera and an 8K camera, allowing you to capture highly detailed images for optimal information.

Accurate Temperature Measurement

The EVO II Dual 640T RTK can accurately detect heat sources from a distance of 2 to 5 metres. By taking advantage of the infrared temperature measurement compensation algorithm, the 640T RTK can regulate temperature differences to within 3°C.

High resolution thermal imaging sensor

The 640T RTK features a 13 mm focal length combined with a 640 * 512 thermal imaging sensor and an 8K ultra high definition visible camera. Together, these sensors provide you with dual vision to give you the crisp, clear imagery you need to accomplish your missions.

Autel Robotics Evo II PRO RTK

LIGHT, EFFICIENT AND RELIABLE

The EVO II RTK series inherits the folding design of the original EVO II series, making it compact, lightweight, portable and ready to fly in just a few seconds. In addition to a maximum transmission range of 9 km, the drone offers a flight time of up to 36 minutes and can reach a maximum speed of up to 20 m/s, making it the ideal flight companion for your daily missions.

MISSION EXECUTION WITH ADVANCED INTELLIGENCE

The EVO II RTK series offers users a full range of features and intelligent solutions to meet a variety of mission needs. With advanced flight controls and the latest AI technology, the drone can significantly improve mission workflows and help reduce operating costs.

Product Video

Drone

Span 397 mm
Weight 1250 g
Operating frequency 2.400 à 2.4835 GHz
Autonomy 38 min
Stationary accuracy Vertical: +/- 0.02m (with visual positioning), +/- 0.2m (with GPS) / Horizontal: +/- 0.02m (with visual positioning), +/- 0.2m (with GPS))
Battery 7 100 mAh



Gimbal

Control accuracy Pitch : -135 à +45° / Yaw : -100 à +100°
Max. control speed 300°/s (ilt)
Angular vibration range +/- 0.005°



Caméra

Sensor 1/2" CMOS
Video resolution(s) 8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Video format MOV, MP4
Photo resolution 8000x6000(4:3) 7680x4320(16:9) 4000*3000 (4:3) 3840*2160 (16:9)
Format(s) photo JPEG, DNG
Max. recording rate Video 120Mbit/s
Zoom x1 à x8
FOV 79°
Aperture size f/2.8 - f/11
Pixels 48 MP



Battery

Type LiPo 3S
Voltage 11.55 V
Capacity 7100 mAh
Énergy 82 Wh
Weight 365 g
Ideal storage temperature De -10 à +30°C
Ideal ambient temperature De 5 à 45°C
Recharging time 90 min



Remote control

Frequency 2.4000 à 2.4835 Ghz
Radio range 5 km (CE), 9 km (FCC)
Built-in screen 3.26" OLED with 854 by 480 pixels
Battery 5000mAh interne
Autonomy 3 hours
Recharging time 2 hours fast charge
Puissance de l'émetteur (EIRP) FCC: =< 26 dBm, ISED: =< 6 dBm, CE: =< 20 dBm, RCM: =< 20 dBm, SRRC: =< 20 dBm
Video return quality 720p à 30 ips / 1080p à 30 ips à 40Mbit/s



Thermal sensor

Camera Uncooled microbolometer sensor
No pixel 12 micrometers
Precision +/- 3°C or 3% reading at an ambient temperature between -20 and +60°C
Zoom 1 to 8x
Video format MOV / MP4 (prise en charge H.264 / H.265)
Recording resolution 640 x 512
Photo modes TIFF + JPG (avec fichier irg)
Photo resolutions 1920 * 1080, 1280 * 720



    • 1 x Drone.
    • 1 x Radio control.
    • 3 x Propeller sets.
    • 1 x Charger.
    • 1 x Power cable.
    • 1 x Remote control charging cable.
    • 2 x Smartphone cables.
    • 1 x Battery.
    • Warranty: 24 months
