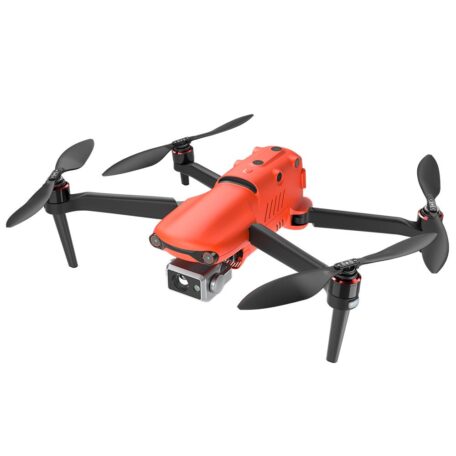

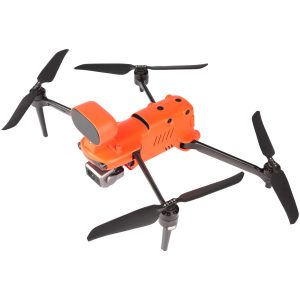

Autel Robotics EVO II Dual 640T 30Hz V2 Rugged Bundle

8499,00  TTC

Sold out

SKU: 6924991102083 Category:

Description

Autel Robotics new generation thermal camera

Resolutions up to 640×512 enable EVO II Dual pilots to capture subjects with great detail from up to 100 meters – 4x farther than any aircraft of its class. The 30Hz refresh rate produces smooth dynamic thermal movement by matching thermal images to video frame rate.

Multiple Temperature Measurement Modes,
Professional Analysis Tool

  • Central Temperature Measurement |
    Spot Temperature Measurement |
    Regional Temperature Measurement

    Central temperature measurement: View real-time display of the temperature in the center area of the screen.
    Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  • Powerful Infrared Thermal Analysis Tool

    Autel IR PC Tool: This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and to generate detailed reports for sharing and collaboration.

  • Temperature Alarm |
    Isotherm |
    Image Enhancement

    Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.



Maximum efficiency in all viewing conditions

EVO II Dual supports up to 10 thermal palettes to cope with a variety of complex shooting environment and mission scenarios.

Picture-in-Picture Mode

The thermal image is integrated into the standard RGB image at the same time. This allows the user to obtain both visual and thermal data at the same time and allows for easier positioning and subject tracking.



  • 8K Video, unmatched clarity

    Autel Evo II Dual records in resolutions up to 7680×4320. With 4 times as many pixels compared to 4k (and 16 times compared to HD), 8k videos redefine image clarity and depth.

  • 48MP Camera

    The Evo II Dual’s 48MP Sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded Metadata making the EVOII Dual the ultimate Public Safety tool.

  • 4X Lossless zoom

    The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4k without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.

  • 4K HDR for greater dynamic range

    4K HDR offers greater detail in highlights and shadows, providing higher-quality images

Additional information

Weight 8 kg
Dimensions 42 × 36 × 21 cm
Choix du produit

Version 640, Version 640T Radiométrique

Brand

Autel Robotics

Fondée en 2014, Autel Robotics a pour mission de développer les technologies aériennes sans pilote afin de répondre et devancer les attentes des utilisateurs de drones. Leur premier produit a été le X-Star en 2015. Le développement du drone EVO II en 2020 marque une nouvelle ère pour Autel Robotics.

Flying Eye est revendeur exclusif du drone VTOL Dragonfish en France.

Product Video

1x EVO II Dual 640T.
1x Remote control.
2 x Drone Batteries.
1 x Battery Charging Hub.
1x Charger
6 x Spare propellers.
1 x USB type B cable.
1 x USB Type-C cable.

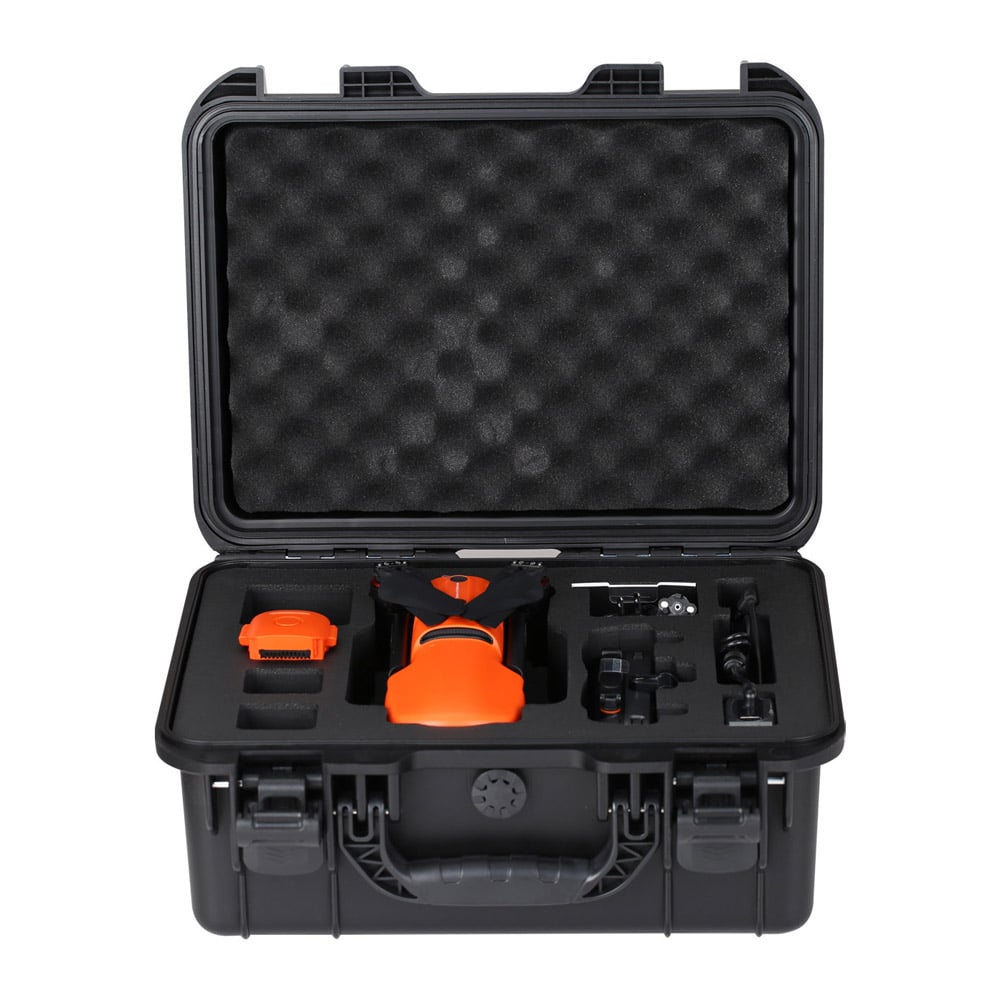

1 x Transport case
1x User Manual.

  • Aircraft
    Takeoff weight 1150 g
    Max takeoff weight 2000 g
    Size(L*W*H) 508*634*111mm(with propellers)
    258*368*111mm(without propellers)
    Wheelbase 397 mm
    Aircraft Battery 7100 mAh
    Max flight time  (no wind) 38 min
    Max hovering time  (no wind) 33 min
    Max horizontal flight speed 20 m/s (Ludicrous)
    Max ascent speed 8 m/s (Ludicrous)
    Max descent speed 4 m/s (Ludicrous)
    Max flight distance (no wind) 25 km
    Max angular velocity 120°/s
    Maximum service ceiling altitude 7000 m
    Maximum resistance to wind Level 8
    Operating temperature range -10℃ ~ 40℃
    Operating frequency non-Japan:2.400 GHz - 2.4835 GHz;5.725 - 5.850 GHz
    Japan:2.400 GHz - 2.4835 GHz;5.650 - 5.755 GHz
    Transmission power 2.4G
    FCC/ ISED:≤27dBm
    SRRC/CE/MIC/RCM:≤20dBm
    5.8G (non-Japan) ; 5.7G (non-Japan)
    FCC/ISED/SRRC/MIC:≤27dBm
    CE/ RCM:≤14dBm
    Hovering accuracy Vertical: ±0.02 m (when the visual positioning is working normally);
    ±0.2 m (when GPS positioning works normally)
    Horizontal: ±0.02 m (when the visual positioning is working normally);
    ±0.5 m (when GPS positioning works normally)

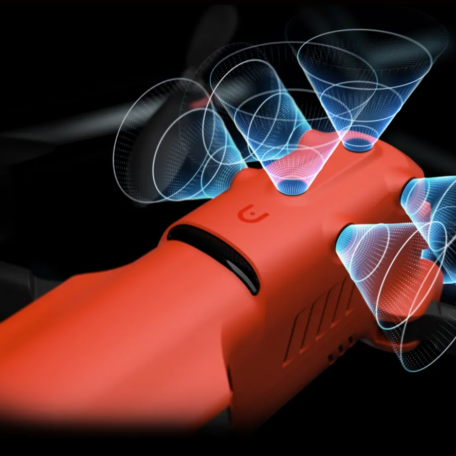

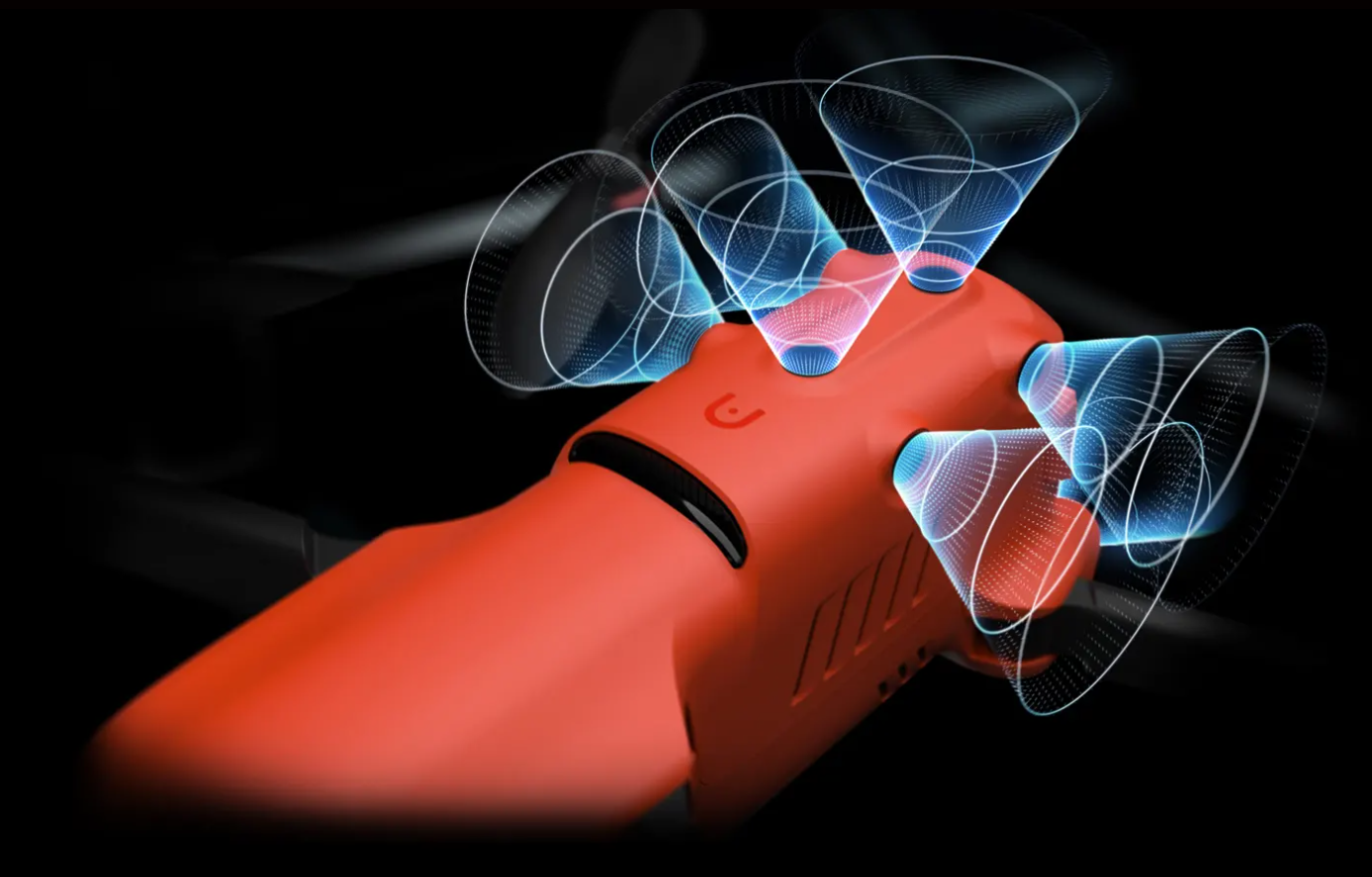

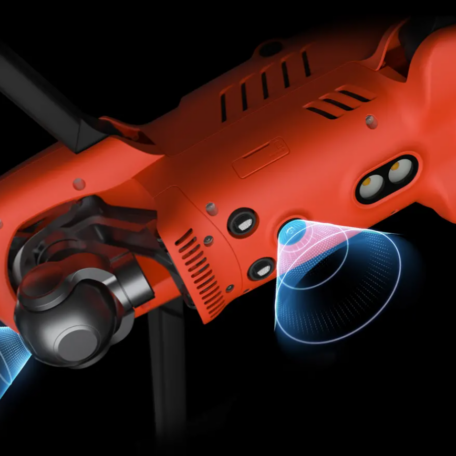

  • Sensing system
    Sensing system type Omnidirectional sensing system
    Forward Accurate measurement range: 0.5-20 m
    Detection range: 0.5-40 m
    Effective sensing speed:<15m/s
    Viewing angle: Horizontal: 60°, Vertical: 80°
    Backward Accurate measuring range: 0.5-16 m
    Detection range: 0.5-32 m
    Effective sensing speed:<12m/s
    Viewing angle: Horizontal: 60°, Vertical: 80
    Upward Accurate measurement range: 0.5-12 m
    Detection range: 0.5-24 m
    Effective sensing speed:<6m/s
    Viewing angle: horizontal: 65°, vertical: 50°
    Downward Accurate measurement range: 0.5-11 m
    Detection range: 0.5-22 m
    Effective sensing speed:<6m/s
    Viewing angle: horizontal: 100°, vertical: 80°
    Left and right Accurate measurement range: 0.5-12 m
    Detection range: 0.5-24 m
    Effective sensing speed:<10m/s
    Viewing angle: horizontal: 65°, vertical: 50°
    Operating Environment Forward, Backward and Sides:
    Surface with clear pattern and adequate lighting (lux > 15)
    Upward:
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)
    Downward:
    Surface with clear pattern and adequate lighting (lux > 15)
    Detects diffuse reflective surfaces (>20%)
    (walls, trees, people, etc.)
  • Thermal camera
    Sensor Uncooled VOx Microbolometer
    Lens FOV H33°V26°
    Lens Focal length 13mm
    Zoom 1-16x
    Sensor resolution 640x512
    Pixel size 12μm
    Wavelength range 8 - 14μm
    Temperature range High gain mode: -20° to +150°
    Low gain mode: 0° to +550°
    Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
    @Environmental temperature-20℃~60℃
    Accurate temperature measurement distance 2-20 meters
    Video resolution 640x512@30fps
    Video format MOV / MP4 (Support H.264/H.265)
    Camera resolution Infrared mode: 640*512
    Picture-in-picture mode: 1920*1080, 1280*720
    Photo mode Single shot
    Burst shooting: 3/5 frames, 3 is the default
    Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s, 5s is the default
    Photo format TIFF+JPG (with irg file)
  • Visible light camera
    Sensor 1/2 inch CMOS; 48M effective pixels
    Lens FOV: 79°
    35 mm format equivalent focal length: 25.6 mm
    Aperture: f/1.8
    Focus range: 0.5 m to infinity (with auto focus)
    Zoom 1-16x (up to 4x lossless zoom)
    ISO range Video: 100-6400
    Photos: 100-3200
    Maximum photo size 8000x6000(4:3)
    7680x4320(16:9)
    4000*3000 (4:3)
    3840*2160 (16:9)
    Photo mode Single shot
    Burst shooting: 3/5 frames
    Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
    Time Lapse:
    JPG: 2s/5s/7s/10s/20s/30s/60s
    DNG:5s/7s/10s/20s/30s/60s
    HyperLight: support (under 4K JPEG format)
    Long exposure:Max. 8s
    HDR imaging: support (under 4K JPEG format)
    Image Format JPG (default); DNG
    Video format MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)
    Video resolution 8K 7680*4320 p25/p24
    6K 5760*3240  p30/p25/p24
    4K 3840*2160 p60/p50/p48/p30/p25/p24
    2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
    1080P 1920*1080   p120/p60/p50/p48/p30/p25/p24
    Max bitrate 120Mbps
  • Camera
    Mechanical range Tilt:-135° to +45°
    Pan:-100° to +100°
    Controllable rotation range Tilt:-90° to +30°
    Pan:-90° to +90°
    Gimbal Three-axis stabilization
    Max control speed (Tilt) 300°/s
    Angular Vibration Range(°) ±0.005°
  • Remote controller and image transmission
    Operating frequency non-Japan:2.400 GHz - 2.4835 GHz;5.725 - 5.850 GHz
    Japan:2.400 GHz - 2.4835 GHz;5.650 - 5.755 GHz
    Max Transmission Distance
    (unobstructed, free of interference)
    FCC:9 km
    CE:5 km
    Transmission power 2.4G
    FCC/ ISED:≤27dBm
    SRRC/CE/MIC/RCM:≤20dBm5.8G (non-Japan) ; 5.7G (non-Japan)
    FCC/ISED/SRRC/MIC:≤27dBm
    CE/ RCM:≤14dBm
    Real-time image transmission quality 720p@30fps / 1080p@30fps
    Maximum bit rate of real-time image transmission 40Mbps
    Remote controller battery 5000mAh
    Run time 3 hours
    Charging time 2 hours fast charging
    Display screen 3.26'' OLED
    854(W) * 480(H)Pixel
    Directly preview the video without connecting a mobile phone
    Working current/voltage 1.7A@3.7V
  • Intelligent Flight Battery
    Capacity(mAh) 7100mAh
    Voltage(V) 11.55V
    Battery type LiPo 3S
    Energy 82Wh
    Weight(g) 365g
    Charging temperature range(℃) 5℃ to 45℃
    Storage temperature and humidity -10~30℃,65±20%RH
    Recommended storage temperature 22~28℃
    Max charging power(W) 93W
    Charging time 90 minutes
  • Intelligent Flight Battery Manager
    Voltage 13.2 V
    Charging temperature range 5℃ to  45℃
  • Charger
    Input 100-240 V, 50/60 Hz, 1.5A
    Output 13.2 V ⎓ 5 A
    5V⎓3A 9V⎓2A 12V⎓1.5A
    Voltage 13.2 ± 0.1 V
    Rated power 66 W
  • Storage
    SD storage Standard:32 GB,
    max. support 256GB (UHS-3 rating required)
    Internal storage 8GB
